振动磨机是一种球磨腔与下部的振动机构固定在一起,通过振动电机带动两个可调式偏心块旋转,使筒体振动，强制筒体内研磨介质和物料高频振动，使物料受到研磨介质强烈的冲击、摩擦和剪切作用使物料粉碎。细颗粒通过磨腔低部筛栏经过蠕动泵重新进入球磨腔,粗颗粒仍然停留在磨腔内继续球磨。 该机不论结构还是流程配置都非常成熟； 该机广泛用于电子、陶瓷、化工、粉末金属、钨、碳化钙、橡胶化合物、磁性材料和无线电工业的高频瓷材料和制药等领域。 特殊选项：缸体内衬：可选不锈钢、陶瓷（氧化铝)、氧化锆、瓷砖、尼龙、聚四氟乙烯、食用级橡胶或聚氨酯等内衬。

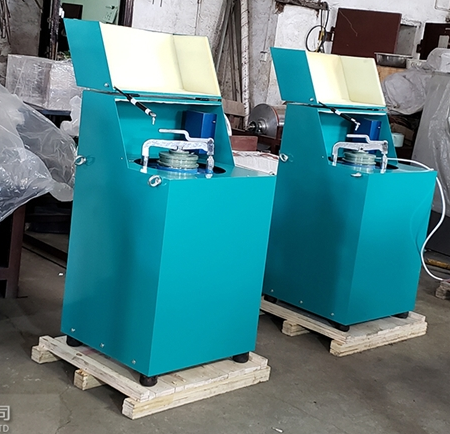

With this vibration mill, the  ball grinding chamber is fixed with the vibration mechanism below it which  drives the rotation of two adjustable eccentric blocks, to get the drum to  vibrate; the grinding media and materials in the drum are forced to start  high-frequency vibration so that the materials are crushed due to violent  impact, friction, and shearing actions from grinding materials. The fine  particles pass the peristaltic pump through the screen fence at the bottom of  the grinding chamber, and then enter the ball grinding chamber again while the  coarse ones are still in the grinding chamber for further milling. No matter in  structure or in work flow, this machine is very mature. Such mills are widely  used in fields such as electronics, ceramics, chemicals, powered metal,  tungsten, calcium carbide, rubber compound, magnetic materials, radioceramic  materials in radio industry, and pharmacy. The material of cylinder lining can  be stainless steel, ceramics (aluminum oxide), zirconium oxide, ceramic tile,  nylon, polytetrafluoroethylene, food grade rubber or polyurethane.

一、特点

I. Characteristic

1．操作简单方便、工作可靠、易清洗、对工作条件的适应能力强。

1. Easy and convenient  operation, reliable work, easy cleaning, and strong adaptability to working  conditions.

2．无环境污染，可进行干式、湿式球磨。

2. No pollution to the  environment; ability in both dry grinding and wet grinding

3．重量轻、体积小、效率高，可做成连续生产型。

3. Light weight, small size,  high efficiency, ability in continuous production

二、设备的主要技术参数

Ⅱ. Technical Parameters

注：ZM-T(罐的体积，单位为L)

例：ZM-T4，为装4 L体积振动球磨机
