一、用途和简介

I. Application and Description

实验室用充气多功能浸出搅拌机可供地质、冶金、建材、化工等矿山和科研机构实验室用于湿法浸出搅拌等。

Laboratory multi-functional air inflation  leaching-out tanks can be used for wet leaching-out agitation in mines of  geology, metallurgy, building material, chemicals, and other sectors, and  laboratories of scientific institutes

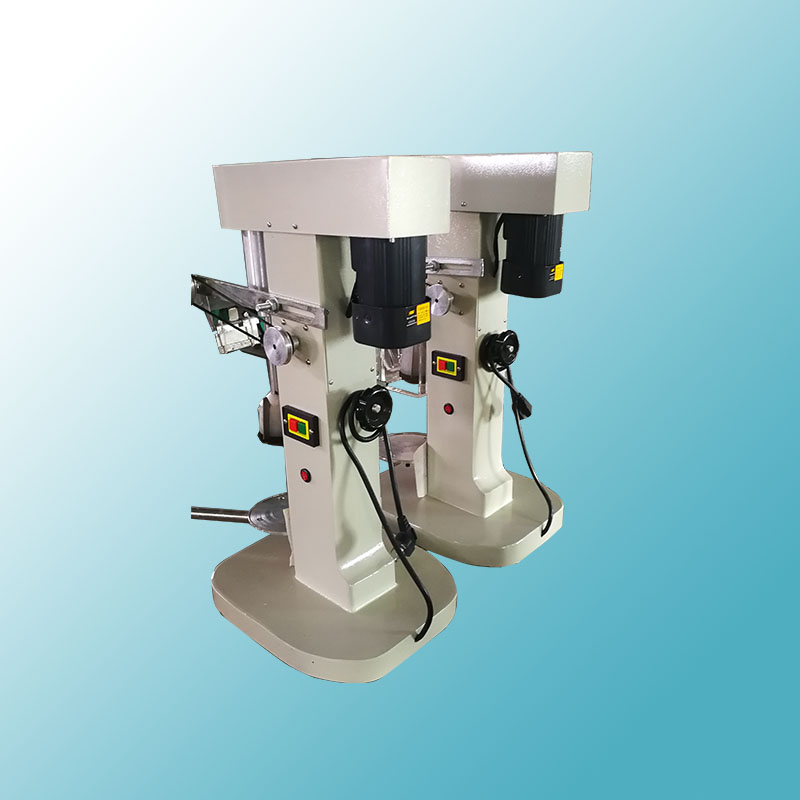

充气多功能浸出搅拌机XJTⅡ是XJT更新换代产品。它采用外充气，模拟现场更为实际。还采用变频技术，叶轮无级调速，数码显示，调整精确。还装有温度控制仪，随时显示槽内矿液温度。配上加热器可加热、控制矿液温度。

XJT II Multi-functional air inflation  leaching-out tank is the regeneration product of XJT leaching-out tank. It  inflates air from outside. Its simulated field is more practical. Besides, it  adopts frequency conversion technology, stepless speed regulation of impeller,  digital display, and accurate adjustment. Besides, it is equipped with  temperature control meter which displays the temperature of ore liquid in the  tank at any time. Coupled with heater, it can heat and control the temperature  of ore liquid.

充气多功能浸出搅拌机XJTⅡ即保存XJT浸出搅拌机性能，又增加了外充气功能。取下循环筒，安上上叶轮即是浸吸槽，与矿山上的吸附槽相同。

XJT II Multi-functional air inflation  leaching-out tank not only inherits the performance of XJI leaching-out tank,  but also has its new function, i.e. outside air inflation. Remove the recirculation  drum and install impeller and the leaching tank is formed which is the same  with the adsorption tank in mines.

二、结构和原理

II. Structure and Working Principle

该搅拌机由下列部件组成：主轴传动部件、机架部件、外充气部件、搅拌槽、循环筒、翻转装置、和电器控制等部件组成。

Such leaching-out tank is compose of main shaft  drive parts, frame part, outside air inflation part, agitation tank,  recirculation drum, turnover mechanism, electric controllers, etc.

搅拌机靠本身转子高速旋转，离心力将转子中间液体甩出，由气泵吸入大量空气生成微小矿化气泡。

Its working principle is: The leaching-out  tank rotates at a high speed through its rotor; the liquid among the rotor is  flicked out under the action of centrifugal force; and the air pump sucks a  large amount of air to produce small mineralized bubbles

转子的转速是无级变速的，可通过变频器来调整。

The rotating speed of rotor is stepless and  variable which can be adjusted through frequency converter.

三、技术参数

Ⅲ. Technical Parameters
