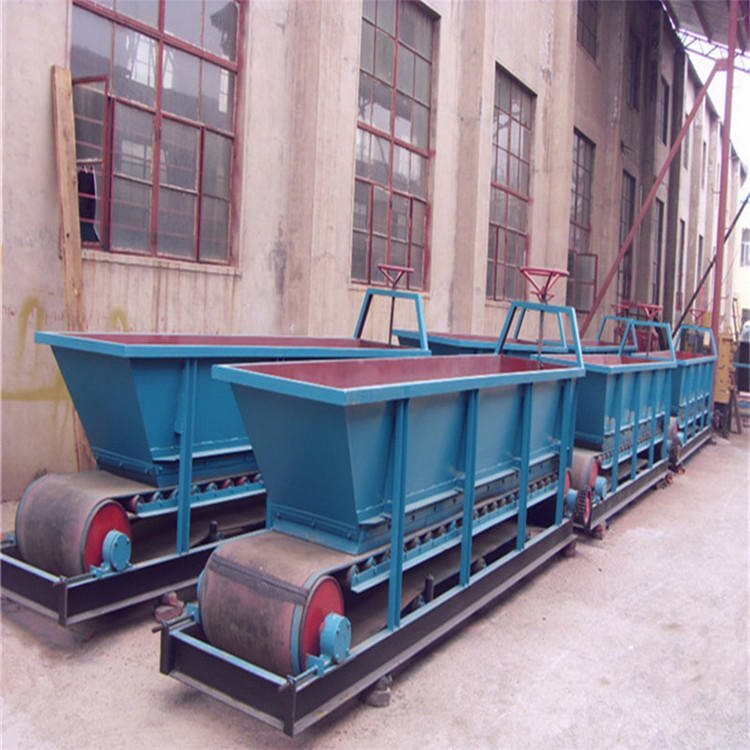

TDG型调速定量给料机 Speed  Governing Constant Weight Feeder

TDG调速定量给料机系列,采用动态给计量方式和计算机变频控制，设备皮带自动张紧装置、跑偏报警?；ぜ跋殖】刂瓶兀哂性诵形榷ā⒖煽啃愿叩挠诺?，计量精度高，能在较恶劣的环境下正常工作，适用于建材、冶金、化工、粮食等行业的散状物料的配料和计量，是实现自动化控制、稳定产品质量的理想计量设备。

TDG speed governing constant weight feeders adopt dynamic  measurement method and computer frequency conversion control. They are equipped  with automatic-type belt tensioning device, running deviation alarm and filed  control switch. Enjoying advantages including steady operation, high  reliability and high measuring accuracy, such feeders can work normally under  severe environment and apply to distribution and measurement of bulk materials  in industries such as building material, metallurgy, chemical and grain. They  are ideal metering equipment to realize automated control and stabilize product  quality.

TDG调速定量给料机-结构特点：

Structural Feature

1.由冷弯C型钢板组成秤体框架，结构新颖，强度大，适合于各种规格非标秤体的设计；

1. Cold-formed C type steel plates constitute scale frame which is  novel in design, high in strength, and applicable to non-standard scales of  various specifications.

2.一体化直联式减速电机，国外进口技术制造，低噪音、低震动、抗粉尘、长寿命、高可靠性；减速电机带反力矩撑 板，轴装结构。与秤体主动滚筒直接相联，安装、调试与维护极其方便。

2. Integrated direct connection reducing motor is manufactured  relying on foreign technology featuring low noise, low vibration, dust  resistance, long service life, and high reliability. The reducing motor is  equipped with counter-torque supporting plate and is of shaft-mounted  structure. It is directly connected to the drive roller of scale, hence very easy  for installation, debugging and maintenance.

3.环形无接头皮带，可根据工艺选择：平皮带、挡板结构、裙边皮带结构；

3. Flat belts, belts with baffles, and belts with skirts can be  selected according to process for endless round belts.

4.独特的X型簧片称量机构，簧片受力更均匀，线性与重复性更好；

4. The unique X-spring weighing mechanism enables the spring to be  under more even stress and has better linearity and repeatability.

5.弱磁式齿轮测速装置的设计，配合测速电路真实的反应了电机速度，测速信号准确、可靠；

5. Weak-magnetic gear speed detection devices can faithfully  reflect motor speed with speed-measuring circuit. The speed measuring signals  are accurate and reliable.

6.独特的皮带防跑偏装置，仿申克秤三托辊结构，可自由调节张紧托辊；

6. Such roller is equipped with unique belt anti-deviation device  and simulated Schenck scale three rollers structure which enable frees  adjustment of tension roller.

7.秤体进料装置自带托板，可控制进料量与封料，以便秤体标定与校零；

7. The scale feeding device is equipped with supporting plate  which can control feeding quantity for the convenience of calibration and  zero-resetting.

TDG调速定量给料机-主要技术参数：

Main Technical Parameter

?系统精度：≤±0.5%；

?  System accuracy: ≤±0.5%

?调速范围：1：10；

? Rang  of speed regulation: 1：10

?调速方式：变频调速；

? Mode  of speed regulation: Speed regulation by frequency variation

?工作方式：连续

? Work  method: Continuous

?使用环境：仪表-50～50℃；秤体-30～50℃；相对时度≤90%

?  Service environment: Instrument - -50～50℃; scale - -30～50℃; relative humidity - ≤90%

?电源：～220V  -15%-10%，50Hz（微机部分）；

?  Power supply: ～220V -15%-10%, 50Hz (microcomputer)

?给料范围：0.2～2000t/h。工艺流程模拟图：

?  Range of feeding speed: 0.2～2000t/h; simulated process flow  diagram

?测速信号;40脉冲/转

?  Speed measuring signal: 40 pulse/revolution
