PS型砂泵是單級單吸離心泵，其主要特點是：流道寬敞，能通過較大的礫石，并能在較大的范圍內變化流量。故能廣泛應用于有色冶金、礦山采選和煤炭、電力、河壩清基等工程輸送礦漿、泥砂、灰渣等物料。投資少、見效快、效率高、經(jīng)濟效益好。

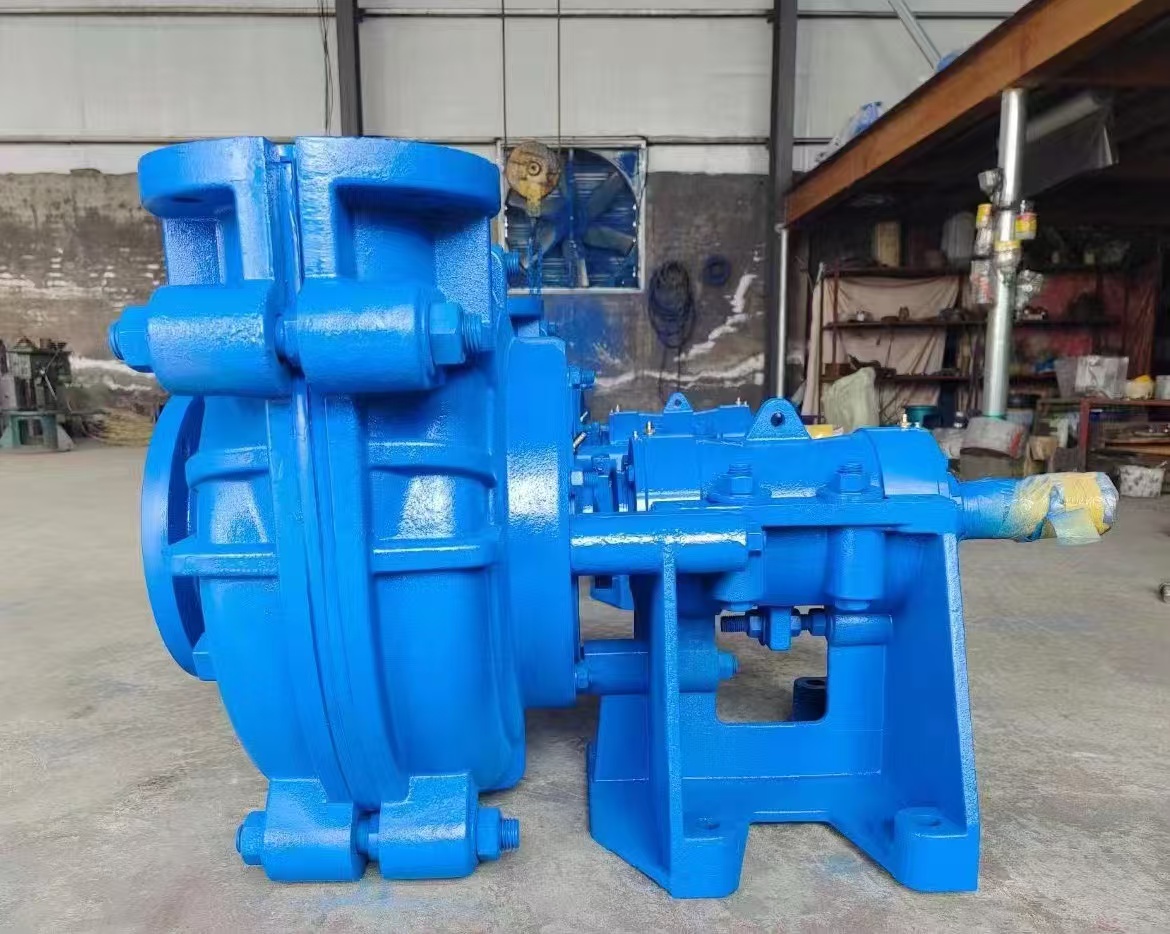

As a single stage single suction volute pump, the sand pump model PS features wide flow passage for fair-sized gravels and the flow regulation within a relatively large range. . Hence, this pump can be widely used to convey the materials like ore pulp, silt and slag etc. in metallurgy of non-ferrous metal, mining and concentration, coal, electric power and river dam foundation preparation projects etc. . This machine also features low cost, high effectiveness, high efficiency and good economic returns.
| 型號規(guī)格 Model | 流 量 Flow rate | 揚程 Head | 允許通過****石塊 Allows for maximum rock | 出礦口尺寸 Size of the mine mouth | 功率 Power | 外形尺寸 Overall dimension | 重量 Weight |
| m³/h | m | mm | mm | kw | mm | kg | |
| 1PS | 8.65 | 15 | 3 | 25 | 3 | 830×328×730 | 97 |
| 11/2PS | 15.6 | 23 | 4 | 38 | 5.5 | 1033×498×713 | 205 |
| 2PS | 25 | 24 | 10 | 50 | 7.5 | 1140×500×1000 | 280 |
| 21/2PS | 43 | 27 | 12 | 63 | 7.5 | 1300×490×1010 | 338 |
| 4PS | 80-140 | 10-30 | 38 | 100 | 11-30 | 1645×1095×1074 | 450 |
| 5PS | 230-300 | 29-36 | 40 | 125 | 37-55 | 1452×650×460 | 670 |
| 6PS | 240-380 | 25-45 | 75 | 150 | 75-115 | 2055×1140×1500 | 2300 |
| 8PS | 300-600 | 25-55 | 100 | 200 | 95-185 | 2312×1344×1785 | 3824 |
