一、产品简介
I. Product  Introduction

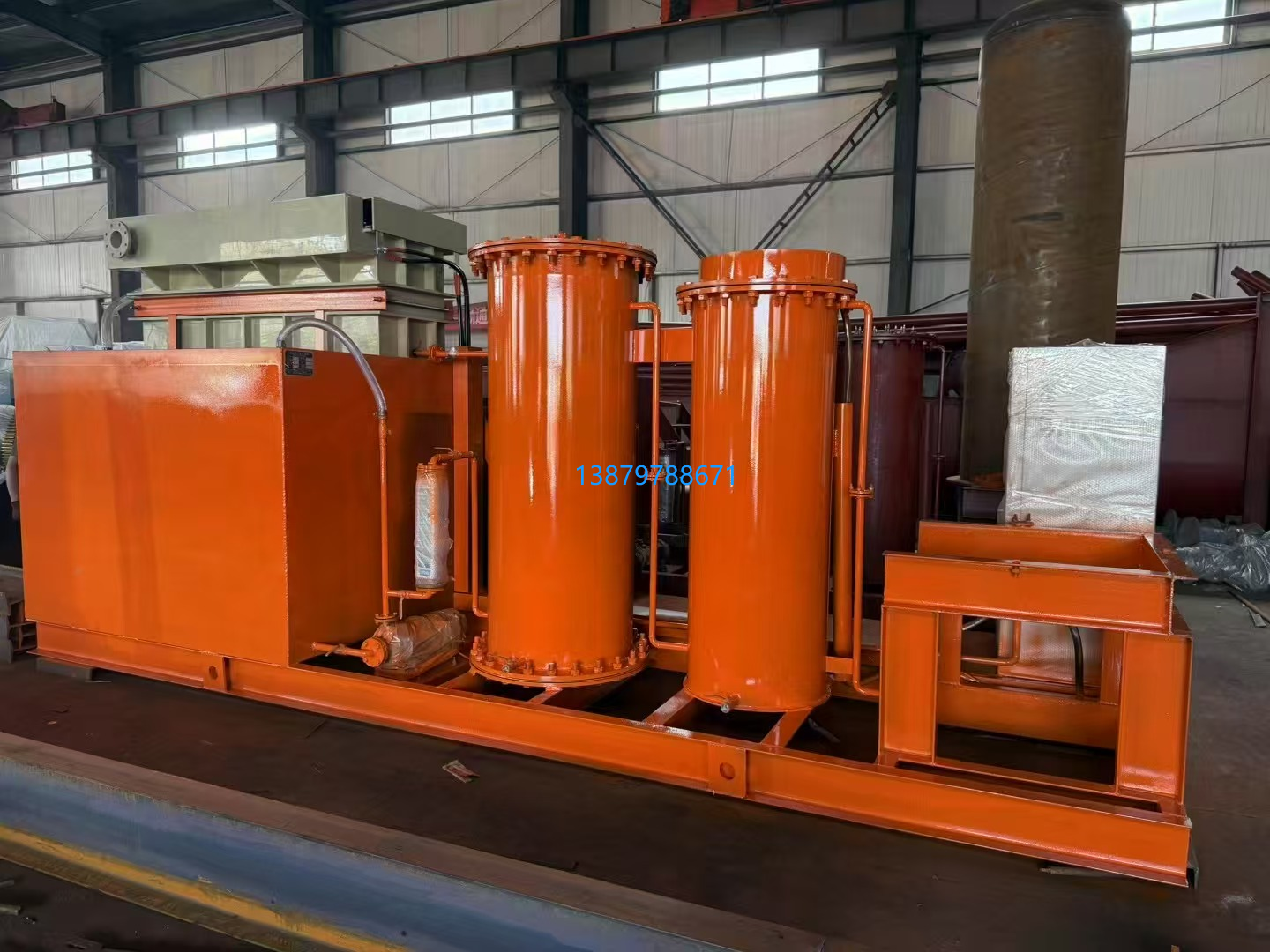

高温高压无氰解吸电解装置是采用新技术、新工艺，应用于黄金生产中处理载金炭的新型、高效产品。该装置对于黄金矿山炭浆厂和堆浸厂产出的载金炭都能很好的进行解吸，产出黄金。该装置自动化程度高，技术指标先进，设备质量好，操作简单易行，设备运行特别稳定可靠、安全。产品已销售到我国20多个省、并出口俄罗斯、缅甸、蒙古国、朝鲜。

HTHP cyanide free  desorption electrolysis unit is a new style high efficiency product integrated  with new technique and technology that is used to process gold carrier carbon  in gold production. . This unit can perform outstanding desorption function for gold carrier  carbon from gold mine carbon pulp plant and heap leaching plant so as to  produce gold. . This  unit features high degree of automation, advanced technique, high quality  equipment, simple operation and extremely stable, reliable and safe operation  of equipment. . This  product has been sold to over 20 provinces in China  and exported to Russia, Burma, Mongolia  and the Democratic People's Republic   of Korea.

二、产品优点：
II. Product  Advantages:

1、解吸率高

1. High desorption rate.

在高温（150℃）、高压（0.45～0.55MPa）、无氰解吸药剂的条件下解吸，解吸率高（98%～99.8%）。93%以上的我厂用户贫炭品位在50克/吨以下。

Desorption is performed at high temperature (150 ℃)  and high pressure (0.45~0.55MPa) without cyanide desorption agent at a high  desorption rate (98%~99%).. The grade of barren carbon  of more than 93% of our customers is below 50 g/t.

2、提高吸附率

2. High absorption rate

加到吸附工艺中经过解吸活化的低品位贫炭，能明显地降低尾液品位，能提高吸附率0.5%～7%。创造出显著的经济效益。

The low-grade desorbed and activated barren carbon added to absorption  process can remarkably reduce the tail fluid grade, enabling the absorption  rate to increase by 0.5%~7% so as to create remarkable economic benefit.

3、生产成本低

3. Low production cost

处理每吨载金炭的直接生产成本为290～690元，比其它解吸电解设备能够降低生产成本65%～85%

The immediate production cost for processing each ton of gold carrier  carbon is 290-690 Yuan, 65%~85% lower than other desorption and electrolysis  plants.

4、生产能力大 4. High production capacity

日处理0.3～10吨载金炭。

0.3~10 tons of gold carrier carbon processed per day.

5、无氰解吸

5. Cyanide free desorption

新型安全无毒的组合解吸药剂，对任何解吸的载金炭，都必须可取得理想的解吸效果，属于经色环保工艺。而且此工艺的解吸液能循环利用数十次，节省药剂和水。只单独采用NaOH做为解吸药剂，对大部分矿山的载金炭解吸效果是不理想的。

This new style safe and innoxious combination desorption agent can perform  ideal desorption on any gold carrier carbon and belongs to Environmentally  Friendly process. .  Furthermore, the desorption liquid from this  process can be used in a cyclic way for tens of times so as to save agent and  water. .  For gold carrier carbon from most mines, it  is an ideal method to use NaOH solely as a desorption agent..

6、立式承压平衡电解槽

6. Vertical pressure balance electrolytic bath

立式承压平衡电解槽不但电解率高：≥99.99%；而且使解吸电解工艺流程简明实用，解吸、电解效果好。一个月只打开1～3次的电解槽，采用气动扳手上卸螺栓，方便，安全可靠；并且此立式电解槽不泄漏含金气体。立式承压平衡电解槽具有自动排放金泥系统，杜绝人工操作造成的金泥损失，丢失。

With a high electrolysis rate (≥99.99%), the vertical pressure balance electrolytic bath enables the  desorption and electrolysis process to be concise and practical for better  desorption and electrolysis effectiveness. . Users  just need to open electrolytic bath for 1-3 times by tightening and loosening  the bolts with pneumatic wrench in a convenient, safe and reliable way; in addition,  no gas that contains gold can leak from this vertical electrolytic bath. . This vertical pressure balance electrolytic bath uses an automatic gold  dust discharge system to avoid the dust loss caused by manual operation.

7、贫炭不需要火法热再生

7. Barren carbon requires no dry heat re-generation

无毒的组合解吸药剂含有炭活化剂，活化剂对炭起到再生作用。采用此解吸电解工艺，贫炭不需要火法热再生，杜绝了贫炭火法热再生造成的炭损失和金损失，节省了炭火法热再生成本和炭火法热再生设备投资。

Innoxious combination desorption agent contains carbon activator for  regeneration of carbon. . Thanks to this desorption  and electrolysis technology, barren carbon requires no dry heat re-generation,  avoiding the carbon and gold loss and reducing the cost of re-generation and  re-generation equipment.

8、多台大型解吸电解装置（≥2000公斤/批）在生产中取得了效果良好的成功应用。

8. Several large-scale desorption and electrolysis unit (≥2000 kg/batch) have achieved  outstanding results during the production.

9、优异的设备质量

9. Excellent equipment quality

用户先后选用三套解吸电解设备的共有四家，选用二套的用户七家；炭浆工艺的黄金矿山选用设备，至今已达十一套。

Among our customers, four have purchased three sets of desorption and  electrolysis plant, and seven have purchased two; up to the present, eleven  sets of equipment have been purchased by gold mines that adopt carbon pulp  technology.

10、高温高压解吸电解设备，取代了多台其它厂家生产的高温高压解吸电解设备。

10. Our HTHP desorption and electrolysis plant has superseded several HTHP  desorption and electrolysis plants produced by other manufacturers..

11、采用特种无损自动方式输送炭，在炭运输过程中不产生粉炭，不造成炭损失和金损失。

11. Carbon is conveyed by the automatic special non-destructive method.  This conveyance process produces no powder carbon, carbon loss and gold loss.

12、贫炭品位低，炭损又低，能显著降低粉炭、碎炭造成的金损失；能够降低选矿生产流程中的黄金积压量。

12. The low grade and loss of barren carbon can significantly reduce the  gold loss caused by powder carbon and smashed carbon while reducing the gold  backlog in ore dressing process.

13、自动化程度高，工人劳动强度低；在无氰环境内工作，工作环境好。

13. High degree of automation reduces the labor intensity of workers;  cyanide free environment presents good working environment.

高温高压无氰解吸电解装置规格型号

Specification and model of HTHP cyanide free  desorption and electrolysis unit

 除以上规格外，可以根据用户需要设计制造特殊规格的高温高压无氰解吸电解装置。如：双解吸柱、双电解槽、不同加热方式的高温高压无氰解吸电解装置。

Besides the  above-mentioned specifications, the HTHP cyanide free desorption and  electrolysis unit of special specification can be designed and manufactured  based on user needs. . For example, double-desorption column and double-electrolytic bath HTHP  cyanide free desorption and electrolysis unit using different heating methods.
